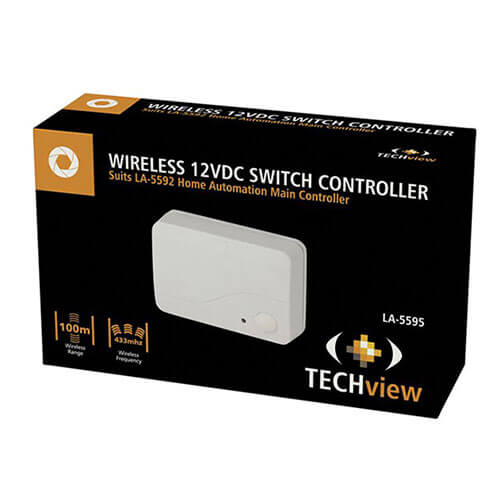

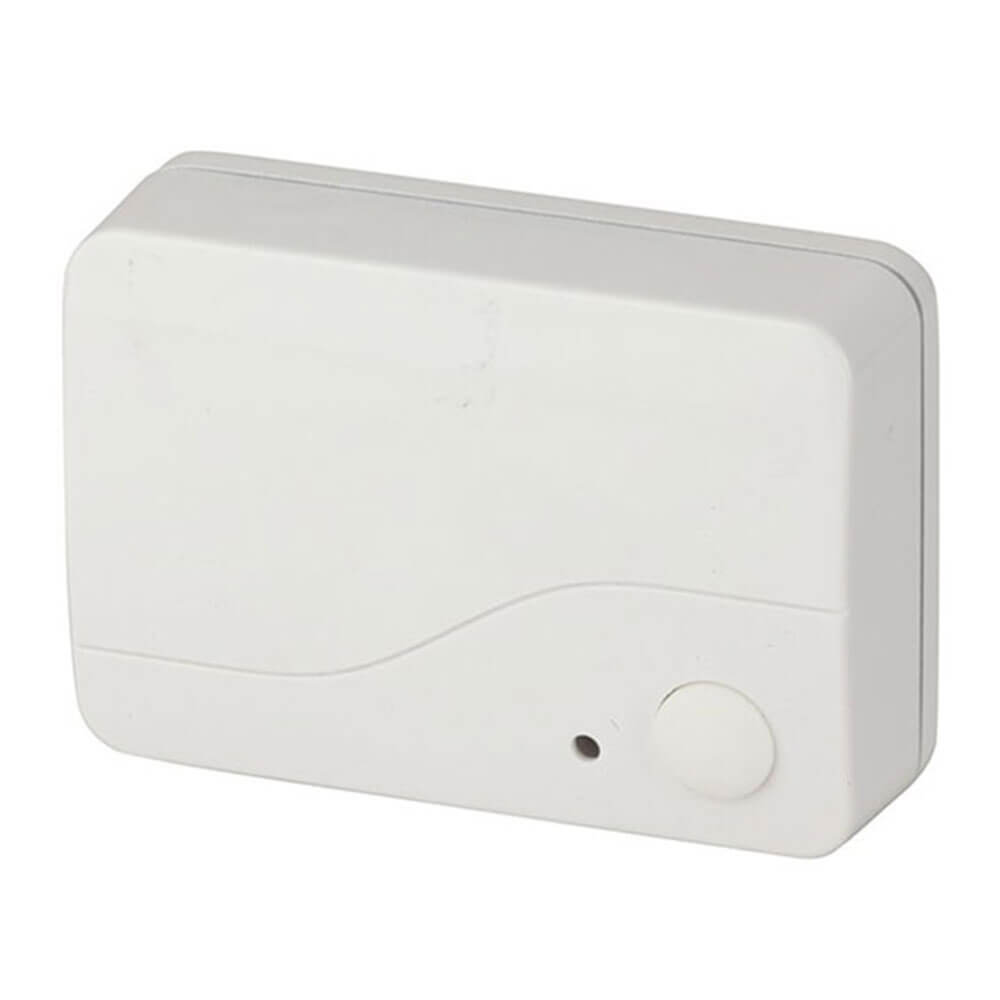

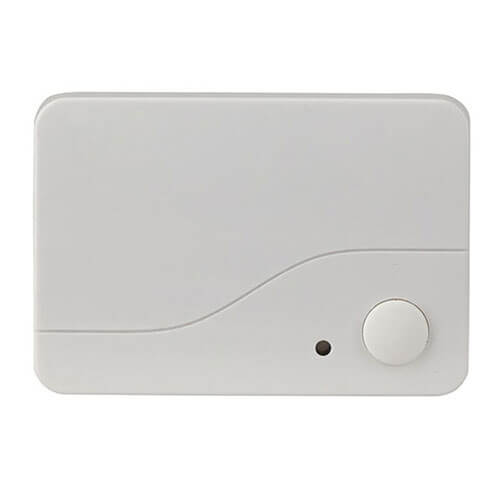

Wireless Switch Module for Home Automation Systems (12V)

This controller module is good for switching 12V devices such as lamps, cameras, doors and garage. Control wireless via the LA-5592 Main Controller via Time schedule, manual and Matrix or pair with the LA-5155 Key Fob Remote Control for use as a wireless switch.

Features:

• Voltage input: 12VDC
• Output Signal: NO or NC
• Maximum Load: 3A @ 14V/ 2A @ 24V
• Wireless Range: 100m line of sight
• Wireless Frequency: 433MHz

Product Specifications

• Width : 80.0mm
• Height : 30.0mm
• Depth : 55.0mm
• AC Voltage : 220.0V
• AC Current Draw : 3.0A
• Effective Range : 100.0m

• Length : 17 cm
• Width : 9.5 cm
• Height : 5 cm
