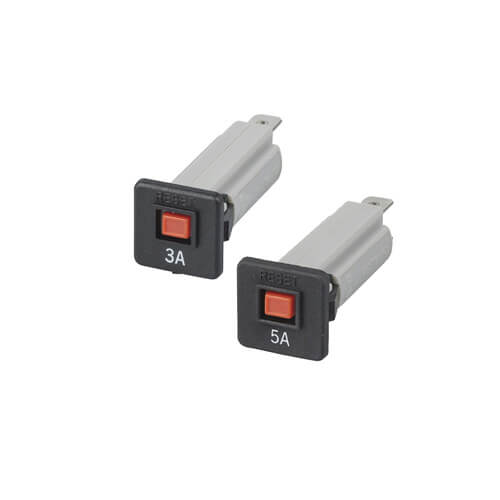

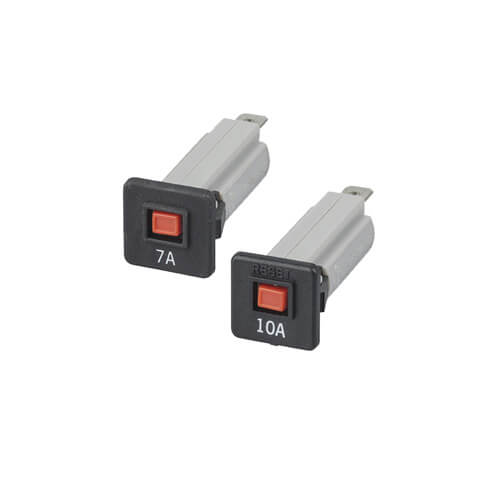

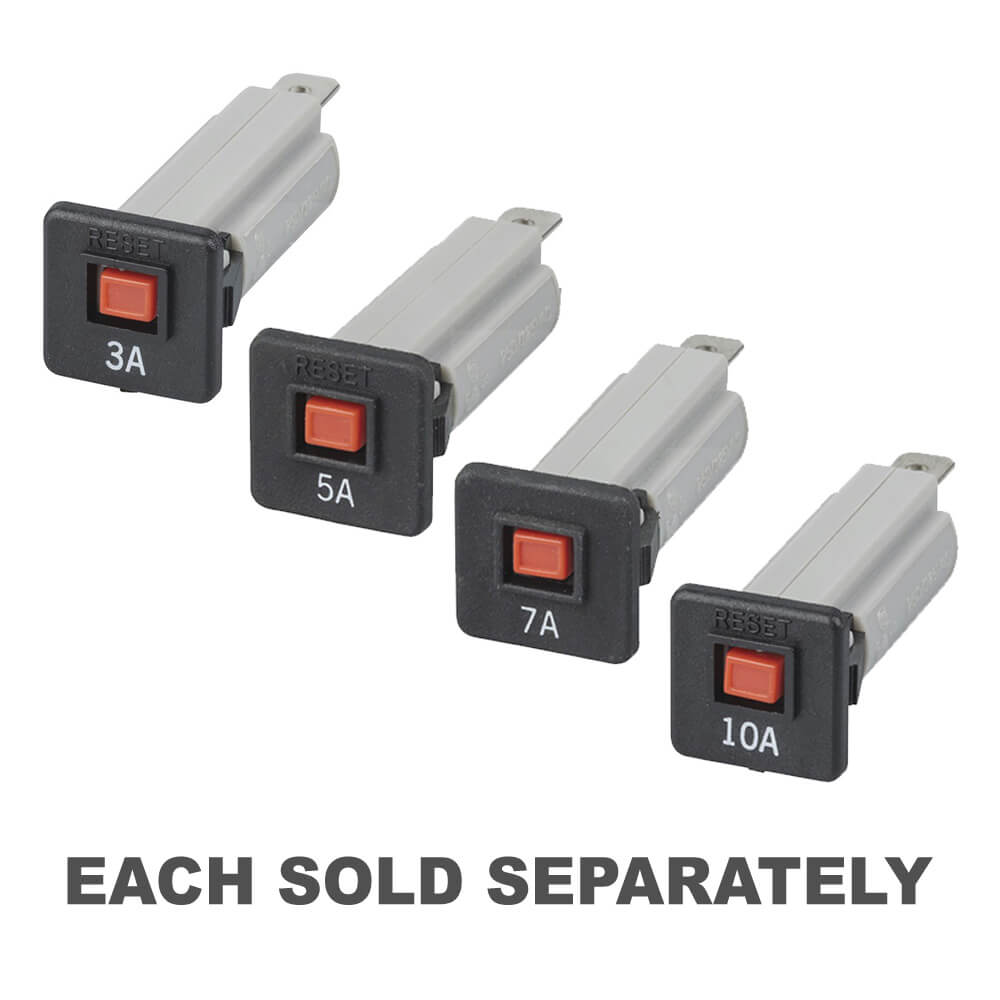

Panel Mount Thermal Circuit Breaker (CBE)

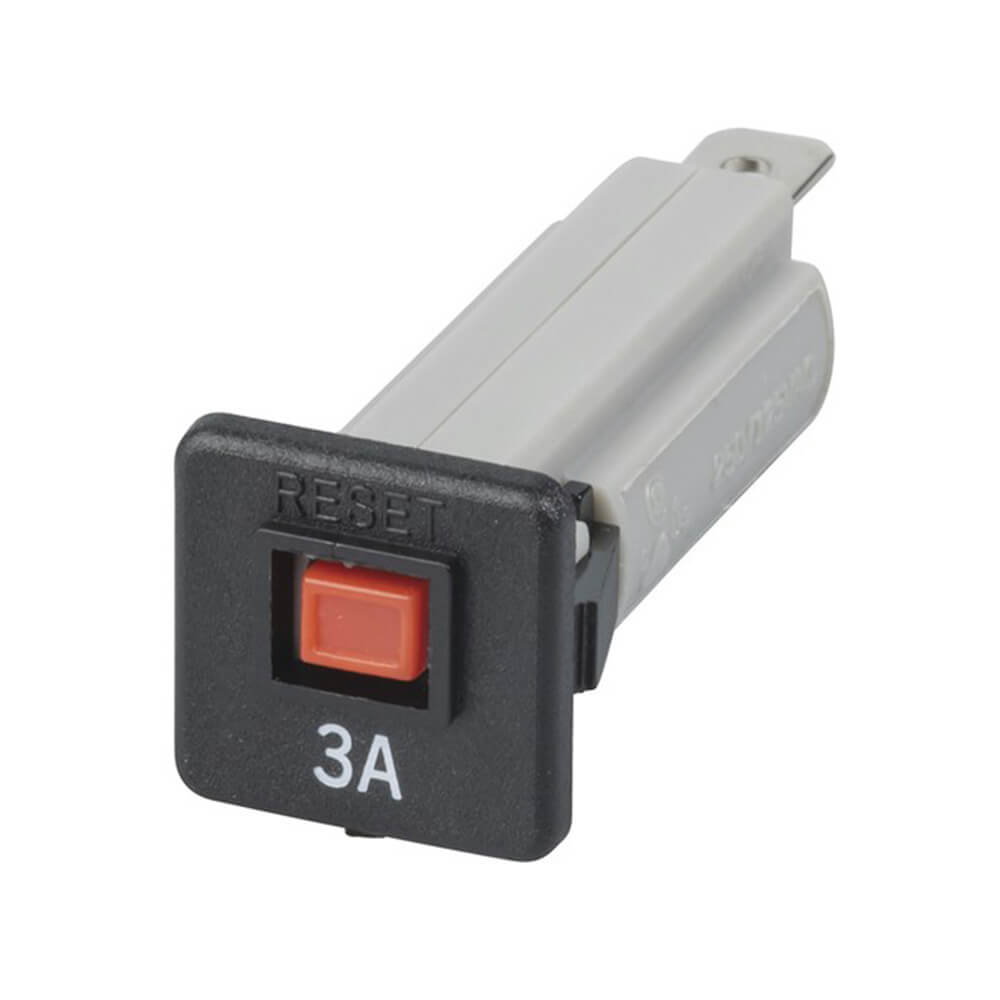

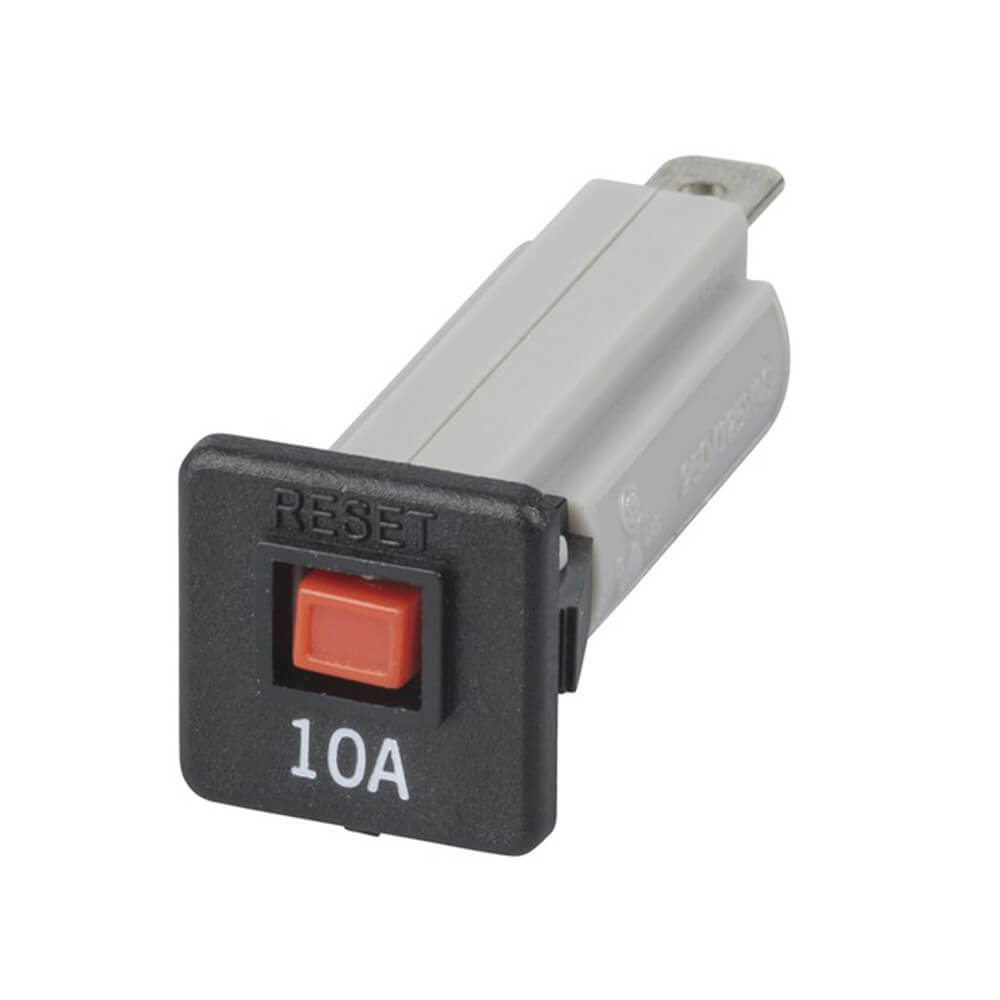

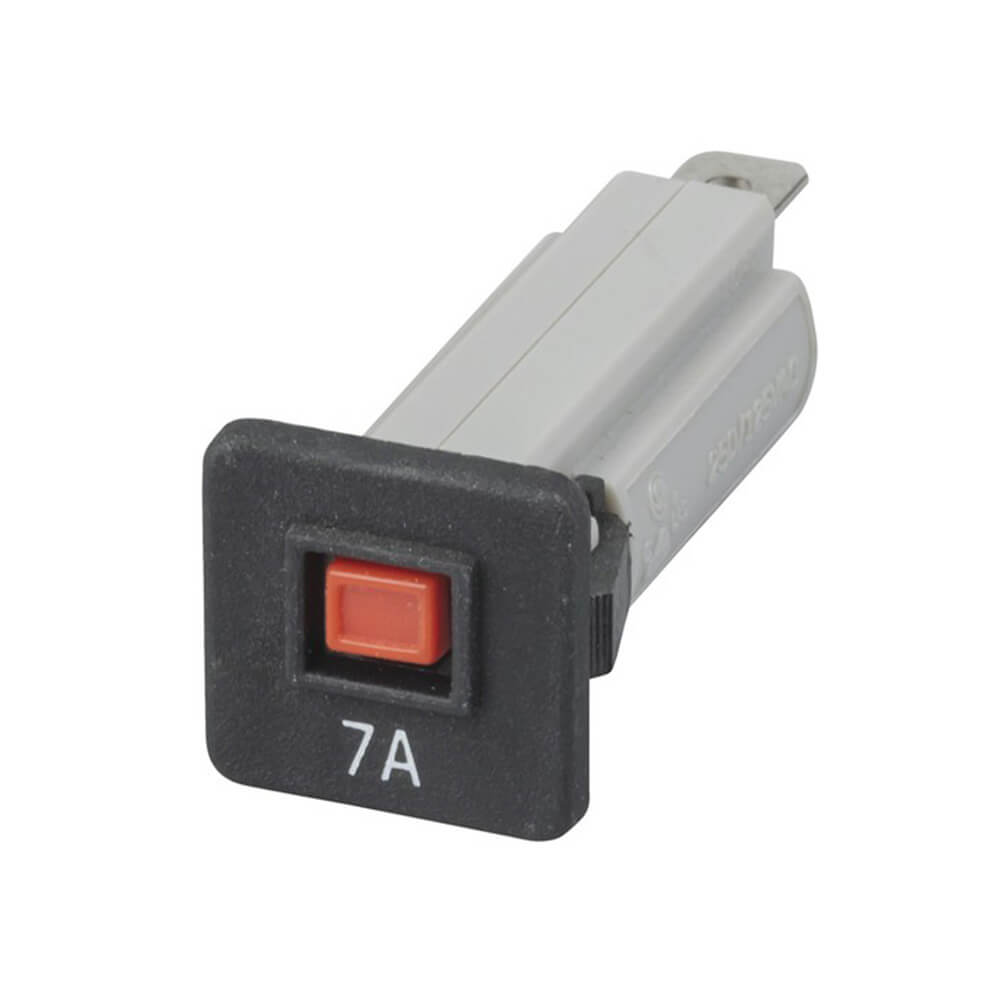

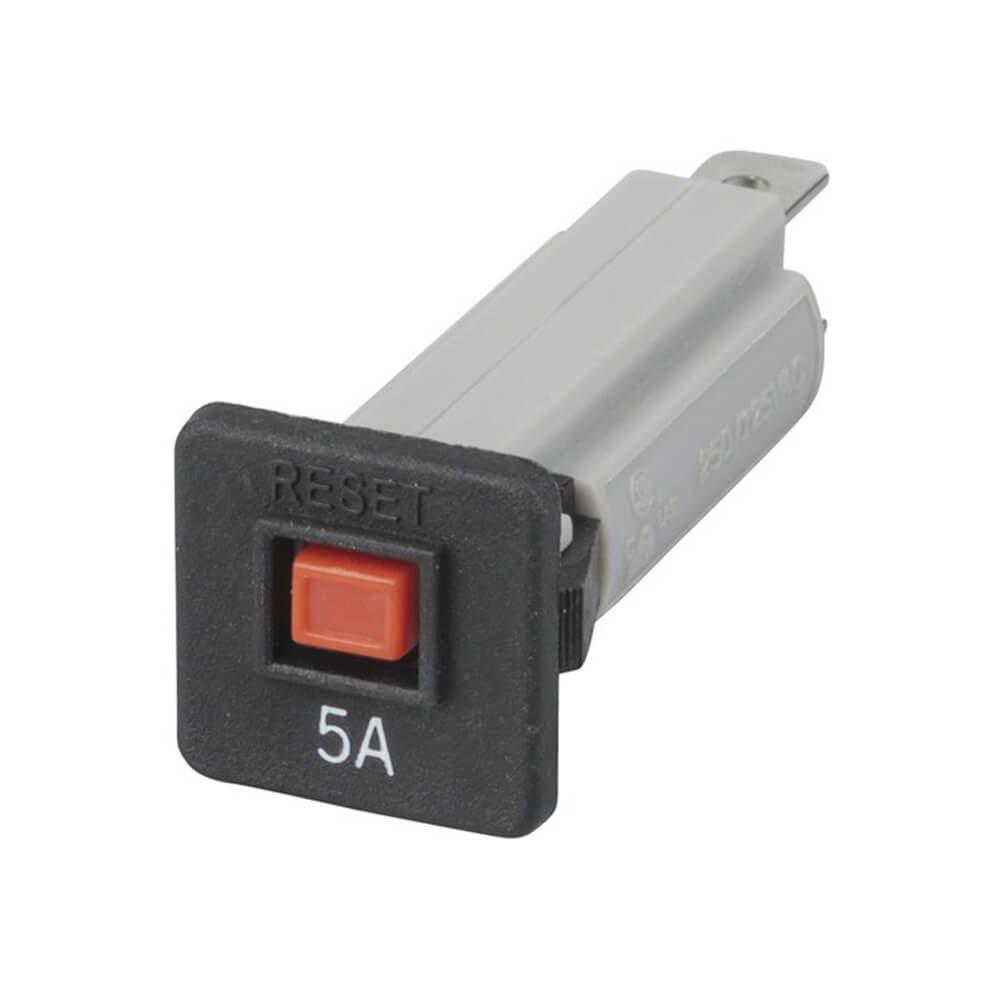

These attractive looking units feature a black 19mm square facade with a centrally mounted bright red `trip' button.

- When tripped, the red button extends.

- To reset simply push button back in (once fault has been cleared).

- Slow response time ideal for inductive/reactive loads.

Features:

Hold Current: 100% load indefinitely

Trip current:

...within 1 hour @ 135% load

...within 1 min @ 200% load

Contact Resistance: 0.16ohms

Product Specifications

• Circuit Breaker Type : Panel mount
• Circuit Breaker Current : 3A
• Circuit Breaker AC Voltage : 125V, 250V
• Circuit Breaker DC Voltage : 32V
• Circuit Breaker Resistance : 0.16Ω
• Circuit Breaker Di-electric Strength : 1500VAC 1 Minute
• Circuit Breaker Contact Endurance : >500 cycles @ 150% of contact rating
• Circuit Breaker Pole Count : 1 pole

• Length : 5 cm
• Width : 2 cm
• Height : 2 cm
