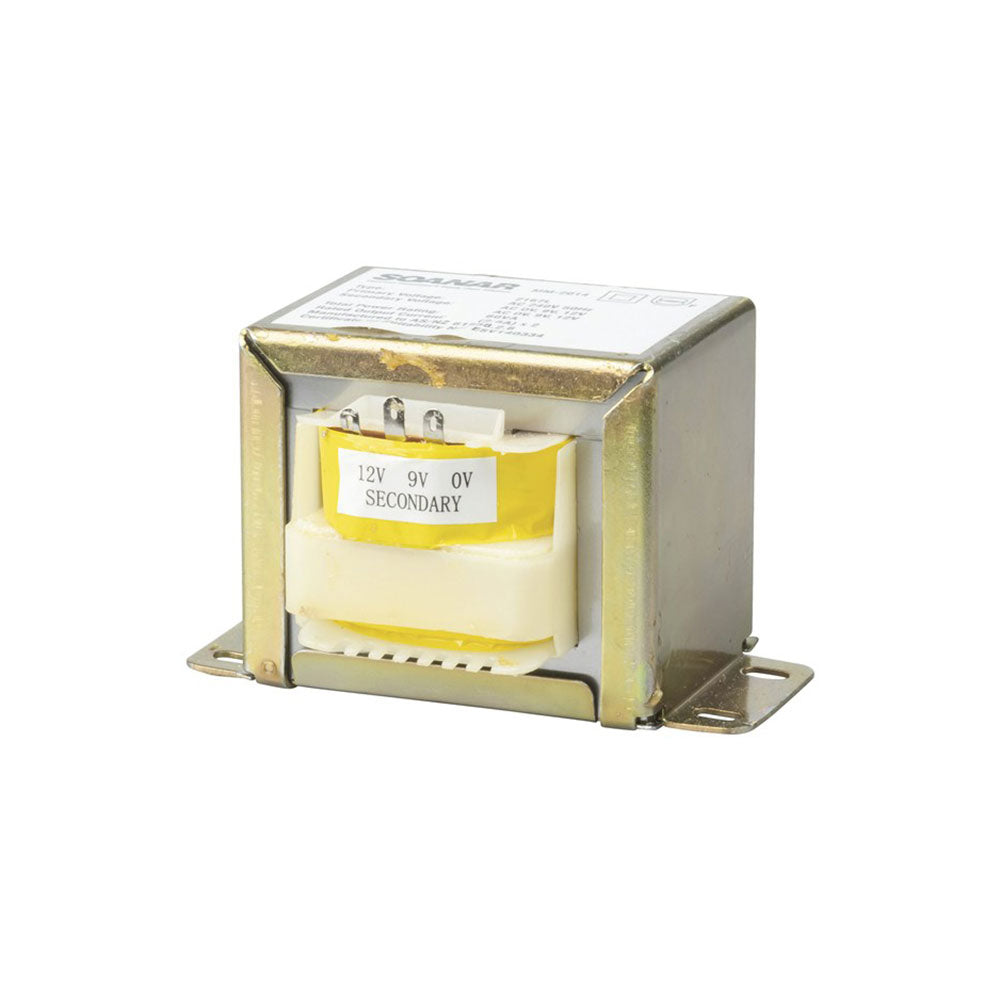

Multi-Tapped Dual Type 2167 Transformer 9V-24V 5A

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current.

Product Specifications

• Primary Connection: 200mm Fly Leads
• Type of Transformer : Laminated Core
• Case Type : 2167
• Primary Winding Connection : Flyleads
• Secondary Winding Connection : Solder Tags
• Secondary Winding Configuration : Multi-tapped
• Temperature Rise Above Ambient at Rated Power : 65DegC
• Regulation : 10%
• Core Material : Laminated Iron
• Magnetising Current : 65mA
• AC current rating : 2.5A, 2.5A
• AC Voltage rating : 9V, 9V, 12V, 12V
• Weight : 1300g
• Mains Voltage Range : 240V
• Rated for AU Mains : true
• Max Input Power : 60VA

• Length : 10 cm
• Width : 7.5 cm
• Height : 6 cm
