Assembly Required

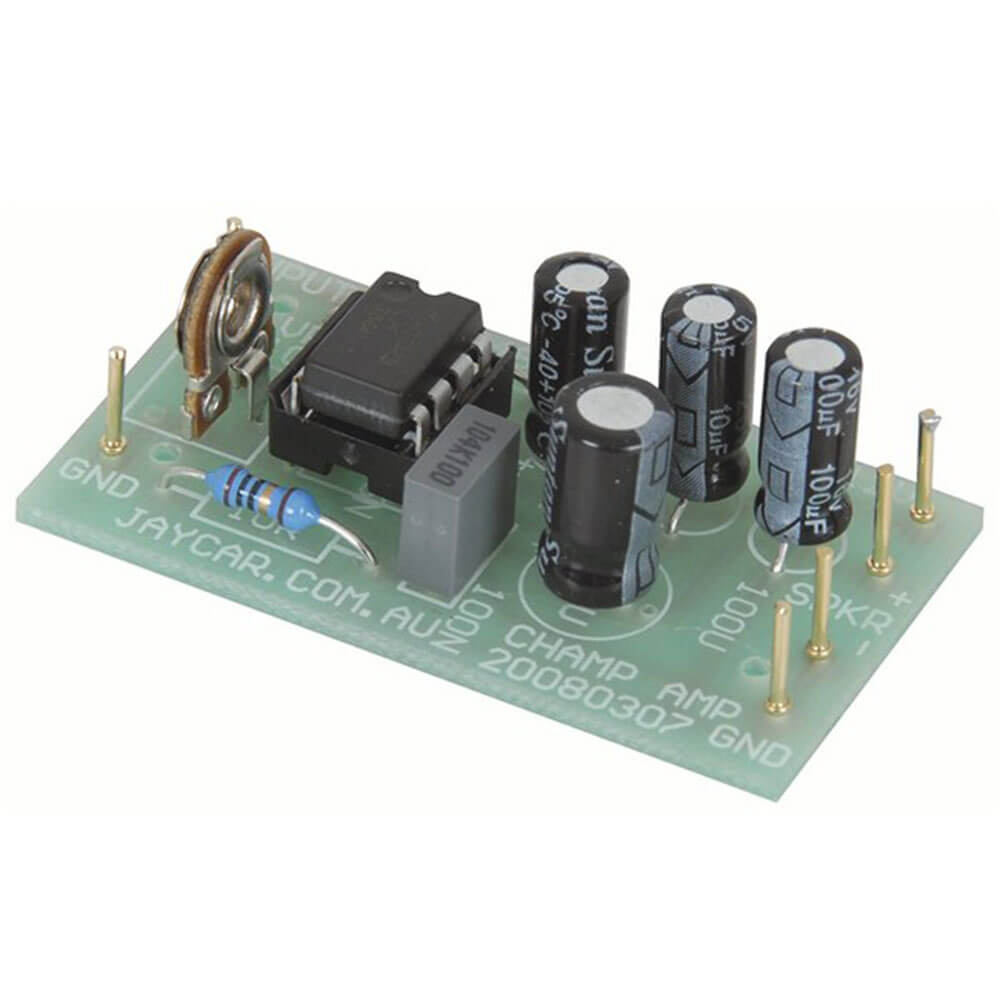

Refer: Silicon Chip February1994 This tiny module uses the LM386 audio IC, and will deliver 0.5W into 8 ohms from a 9 volt supply making it ideal for all those basic audio projects. It features variable gain, will happily run from 4-12VDC and is smaller than a 9 volt battery, allowing it to fit into the tightest of spaces. PCB and all electronic components included.
Product Specifications
- Difficulty : Simple
- Estimated Construction Time : 15.0min
- Tools required : Soldering Iron
- Application Field : Amplifier
- PCB Width : 26.0mm
- PCB Length : 46.0mm
- Audio Device : Amplifier
- Output power : 0.5W
- Output impedence range : 8.0Ohm
- Audio power supply : 9V
- Length : 20 cm
- Width : 10 cm
- Height : 3 cm
